Axis F1004

1/4" (effective) progressive scan RGB CMOS, F2.5, 1280 x 720, WDR, 0.5 lux, 1/24500 s to 1/6 s, -20 to 50°C, 27 x 20 x 18 mm, 128 g
Out of Stock
€144.12

Excluding VAT.
Reference: 01003-001

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Extremely discreet surveillance

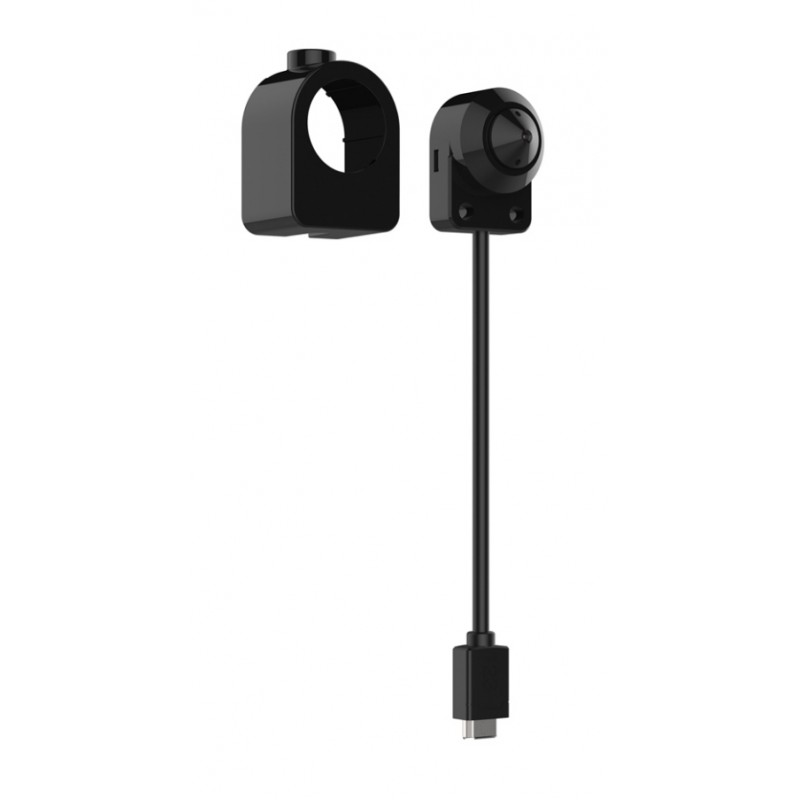

AXIS F1004 Pinhole Sensor Unit has a pinhole lens for extremely discreet indoor video surveillance. Only a very small hole would be visible externally. It is ideal for use in retail stores, ATMs, and ticket/vending and health monitoring machines. The sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel that is up to 5.2 mm (3/16 in.) thick when used with the included mounting bracket.



AXIS F1004 PInhole offers a 57º horizontal field of view, a 720p video resolution, and good low-light performance in color. It comes with a detachable 8-m (26 ft) cable for connection to an AXIS F Main Unit.
Axis
01003-001

Data sheet

Connectivity technology
Wired
Depth
20 mm
Frame rate
30 fps
Height
18 mm
Housing material
Aluminium
Maximum resolution
1280 x 720 pixels
Minimum illumination
0.5 lx
Operating temperature (T-T)
-20 - 50 °C
Optical sensor size
1/4 "
Placement supported
Indoor
Sensor type
CMOS
Viewing angle, horizontal
57 °
Viewing angle, vertical
31 °
Weight
14 g
Width
27 mm
Number of cameras
1

01003-001.pdf

Axis F1004 Data Sheet

Download (584.62KB)
