Axis M5055
1/4.85” CMOS, H.264, 1920x1080, 25/30 fps, PTZ, 2.2–11.0 mm, F1.4–F2.5, IP51, microSD, RJ-45, 130x63 mm
€0.00
Excluding VAT.

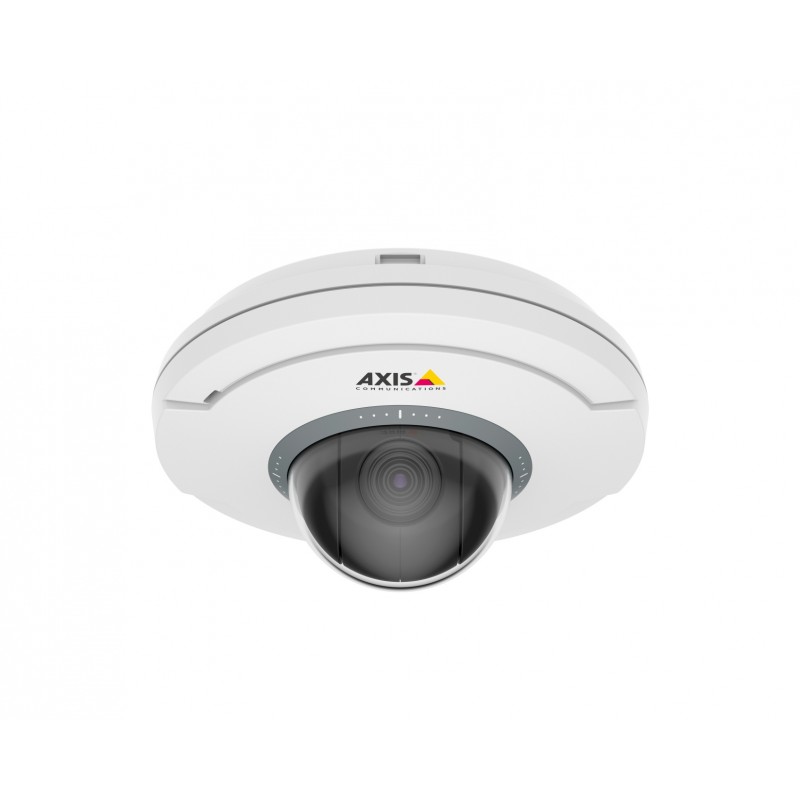

AXIS M5055 PTZ Network Camera is an ultra-discreet, palm-sized, pan-tilt-zoom camera for remote indoor monitoring.
It provides full frame rate video in HDTV 1080p resolution, and supports multiple H.264 and Motion JPEG video streams.
AXIS M5055 is a ceiling-mount camera that provides flexible coverage over a 500 m² (4300 sq. ft) area with ±180° pan,
90° tilt, and 5x optical zoom. The IP51 rating ensures protection against dust and dripping water, enabling the camera
to operate even when a sprinkler system is activated.
- HDTV 1080p
- 5x optical zoom and autofocus
- IP51-rated
- Power over Ethernet (IEEE 802.3af)
- Built-in analytics
It provides full frame rate video in HDTV 1080p resolution, and supports multiple H.264 and Motion JPEG video streams.
AXIS M5055 is a ceiling-mount camera that provides flexible coverage over a 500 m² (4300 sq. ft) area with ±180° pan,
90° tilt, and 5x optical zoom. The IP51 rating ensures protection against dust and dripping water, enabling the camera
to operate even when a sprinkler system is activated.
- HDTV 1080p
- 5x optical zoom and autofocus
- IP51-rated
- Power over Ethernet (IEEE 802.3af)
- Built-in analytics
01081-001
Data sheet
- Bluetooth
- N
- Certification
- EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN-35; IEC/EN/UL 62368-1; IEC/EN 60529 IP51
- Connectivity technology
- Wired
- Ethernet LAN
- Y
- Form factor
- dome
- Frame rate
- 30 fps
- Height
- 63 mm
- Housing material
- Plastic
- International Protection (IP) code
- IP51
- IP address filtering
- Y
- Maximum resolution
- 1920 x 1080 pixels
- Minimum illumination
- 1.2 lx
- Mounting type
- Ceiling
- Operating temperature (T-T)
- 0 - 45 °C
- Optical sensor size
- 1/4.85 "
- Password protection
- Y
- Placement supported
- Indoor
- Power source type
- PoE
- Sensor type
- CMOS
- Supported network protocols
- DIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
- Video compression formats
- AVC,H.264,M-JPEG,MPEG4
- Viewing angle, horizontal
- 71 °
- Viewing angle, vertical
- 40 °
- Weight
- 375 g
- Wi-Fi
- No
- Wide Dynamic Range (WDR)
- Y
- Number of cameras
- 1
- Privacy masking
- Y
- Video streaming
- Y
Specific References
- EAN13
- 7331021059917
1/4.85” CMOS, H.264, 1920x1080, 25/30 fps, PTZ, 2.2–11.0 mm, F1.4–F2.5, IP51, microSD, RJ-45, 130x63 mm
