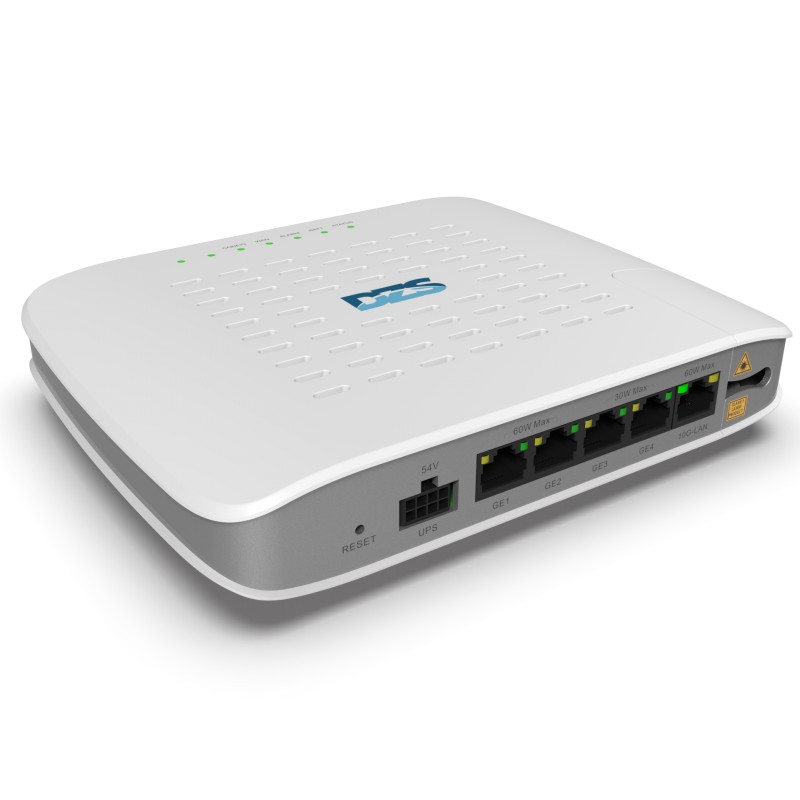

5205P XGS-PON/10GS FiberLAN Desktop ONT

HX-5228XG Wi-Fi 6 carrier-grade wireless XGS-PON ONT

5205P

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Introducing the next generation of 10Gbit products designed for Enterprise and Hospitality deployments requiring secure, Ethernet-only connectivity in a compact footprint. The SFP+ based uplink supports both symmetric 10/10 XGSPON and Active Ethernet technologies by simply swapping the optical transceiver.
All Ethernet LAN ports can be separated into different services allowing the configuration of dedicated ports for IP video and data for one or more business work groups or departments. Unique VLANs may be configured per user to ensure full isolation of each department's data traffic

The 5205P PON/AE ONT provides four 10/100/1000 Base-T and one 100/1000/2.5G/5G/10GBase-T LAN ports. All five ports support 802.3af/at PoE/PoE+ while three of them, including the 10GE port, support 802.3bt PoE++ (or 4-pair PoE), allowing for convenient connections to IP phones, PTZ cameras, wireless access points, and remote switches.

Supports 10Gbps/10Gbps
  • (Downstream/Upstream) with pluggable SFP+ WAN interface
  • One 10 gigabit multi-rate 100M/1G/2.5G/5G/10G Ethernet interfaces
  • Four gigabit multi-rate 10/100/1000M Ethernet interfaces
  • 802.3af, at, and bt PoE++ compliant
  • Up to 120W of PoE power per system
  • Enterprise LAN features (802.1x, LLDP)
  • Fibre management tray option
