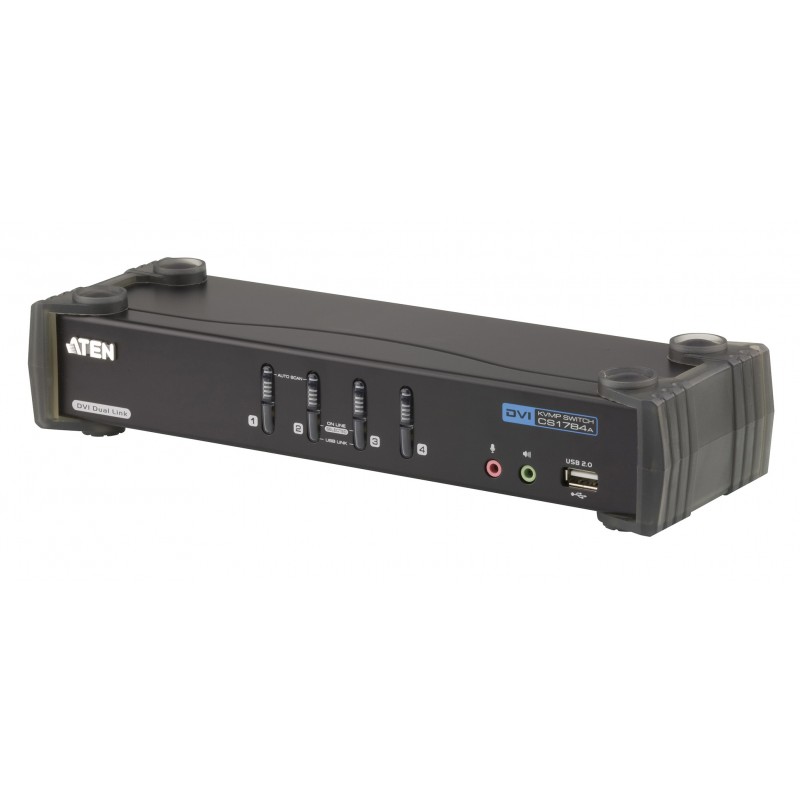

Aten CS1784A

Features



- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio

- One USB console controls four computers and two additional USB devices

- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification

- Full bass response for high quality 2.1 channel surround sound systems

- Computer selection via front panel pushbuttons, hotkeys, and mouse

- Multiplatform support – Windows, Linux, Mac, and Sun*

- Independent switching of KVM, USB, and Audio focus

- DVI digital and analog monitor support – fully compliant with the DVI specifications

- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)

- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080

- HDCP compatible

- Support widescreen resolutions

- Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports

- Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer

- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice

- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards

- Complete keyboard emulation for error-free booting

- Mac/Sun keyboard support and emulation*

- Multilingual keyboard mapping – supports English, Japanese, and French keyboards

- Auto Scan Mode for monitoring all computers

- Firmware upgradable



* PC keyboard combinations emulate Mac/Sun keyboards

* Mac/Sun keyboard work only with their own



Package Contents



- 1x CS1784A USB DVI Dual Link KVMP™ Switch

- 4x 2L-7D02UD DVI-D KVM Cable Sets

- 1x 0AD6-1605-24EG Power Adapter

- 1x User Instructions
