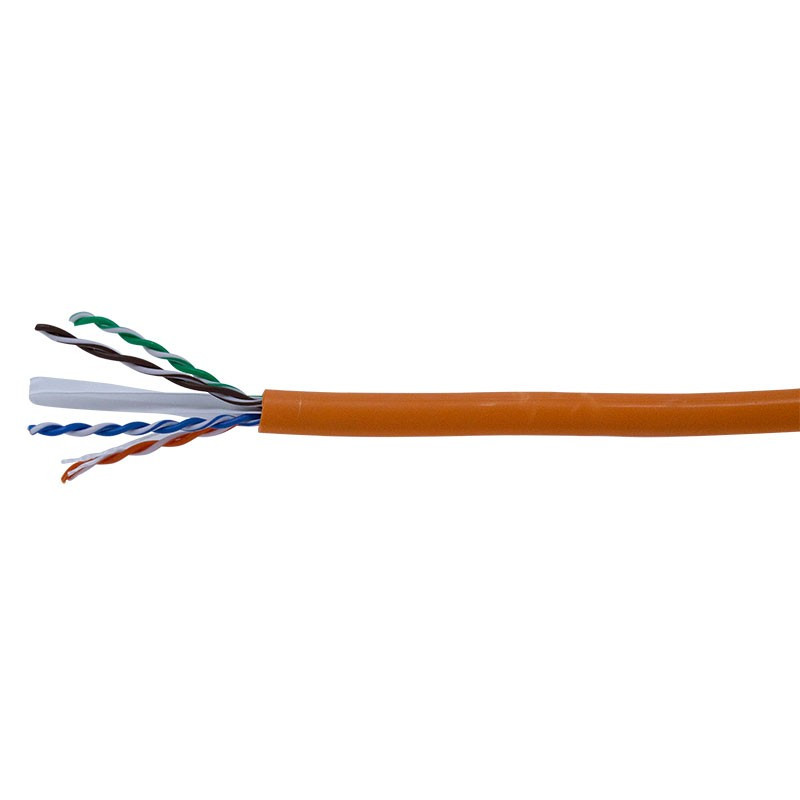

Cat6 U/UTP LSZH B2ca Solid Cable
  • Cat6 U/UTP LSZH B2ca Solid Cable
  • Cat6 U/UTP LSZH B2ca Solid Cable

Cat6 U/UTP LSZH B2ca Solid Cable

305m Orange B2CA Cat6 Cable
In Stock
€187.84

€160.88 Each

Excluding VAT.
Reference: 001-003-005-68

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Category 6 Unshielded Twisted Pair Cable is designed for use in next generation data communications networks, and will comfortably support present applications including Gigabit Ethernet.

The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.

Connectix Category 6 UTP Solid Cable offers the performance characteristics required by the ever-present Category 6 Standard. When used in conjunction with Connectix Category 6 Modules and Patch Panels the user will get a link performance exceeding Category 6 requirements. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.

Features & Benefits

• Category 6 performance
• Supplied metre marked for easy installation
• Performance exceeding Category 6 Specifications
Connectix Cabling Systems

Data sheet

Construction
4 twisted pairs cabled together with spine
Operating temperature (T-T)
-20˚C to +70˚C
Conforms to
IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/ANSI Cenelec EN50174
Fire Rating
B2ca s1a,d0,a1
Inner Conductor
0.53mm (+/-0.01mm) plain copper
Insulation
High density polyethylene
Colour Code
Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White
Jacket
FR-LSZH
Overall Diameter
6.1 +/- 0.3 mm
Min. Bending Radius Installed
24.5mm
DC Resistance
Max 2.5%
Velocity Ratio
69%
Installation temperature (T-T)
0˚C to +50˚C
Sheath
FR-LSZH
Capacitance Unbalance (pair to ground)
< 330 pF/100 m
Insulation Resistance
> 5000 MΩ*Km
Installation Temperature Range
0˚C to +50˚C
RAL Colour
Orange - 2004
Characteristic Impedance @1-250 MHz
100 +/- 15 Ω
Operating Temperature Range
-20˚C to +70˚C
Dielectric Strength
2500V DC 2s
