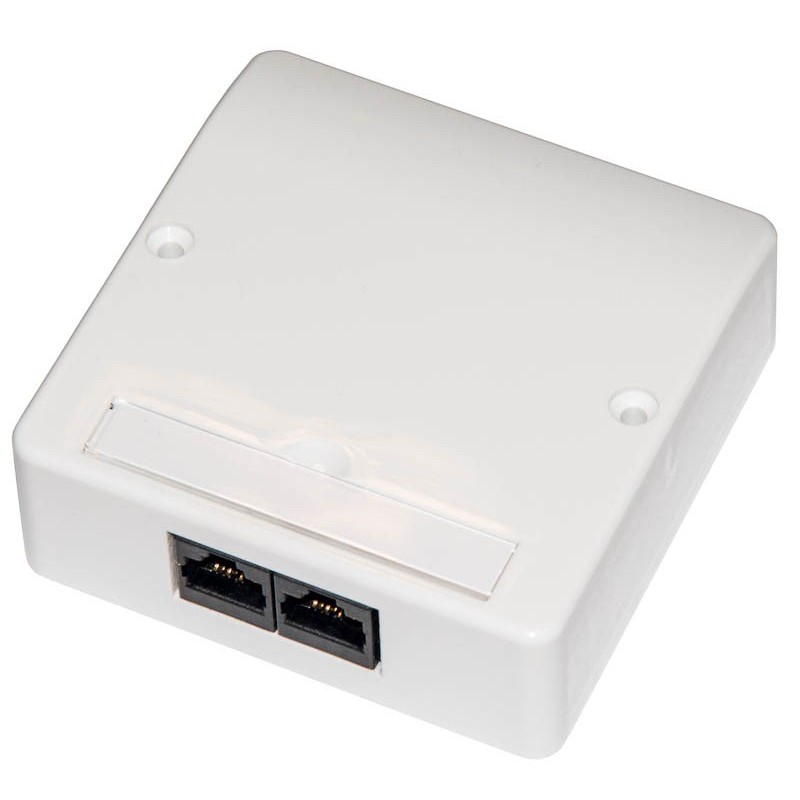

Cat 6 4000 Series - Vertical Outlets

The Connectix 4000 Series offers Category 6 performance in a high-density package.

The 4000 Series is extremely quick and easy to install; just attach the base plate, snap in the PCB, punch down the cables and install the cover. Gone are the problems of installing modules into a faceplate and pushing excess wires into a back box.

The 4000 Series outlets have been designed for direct wall mounting with top entry mini trunking. In addition, they fit on a standard back box to provide maximum mounting flexibility.

The position of the sockets on the vertical outlet allows for a compact installation without protruding leads.

Features:

• High density, single gang unit
• Category 6 performance
• No protruding leads
• Designed for direct wall mounting
• Custom logo service available
• Available in a 2 or 4 port version

Specifications:

• Width - 87mm
• Depth - 27mm
• Height - 87mm
• Material - ABS thermoplastic resin, with grade UL94 VO at 1.5mm flame retardancy
• Finish - High gloss
• IDC Blocks - Industry standard IDC blocks
• PCB - 1.6mm double sided PTH boards
• Conforms to - ANSI/TIA-568-C Category 6 Specification
