Customer Splice Point (CSP)x4i
  • Customer Splice Point (CSP)x4i
  • Customer Splice Point (CSP)x4i

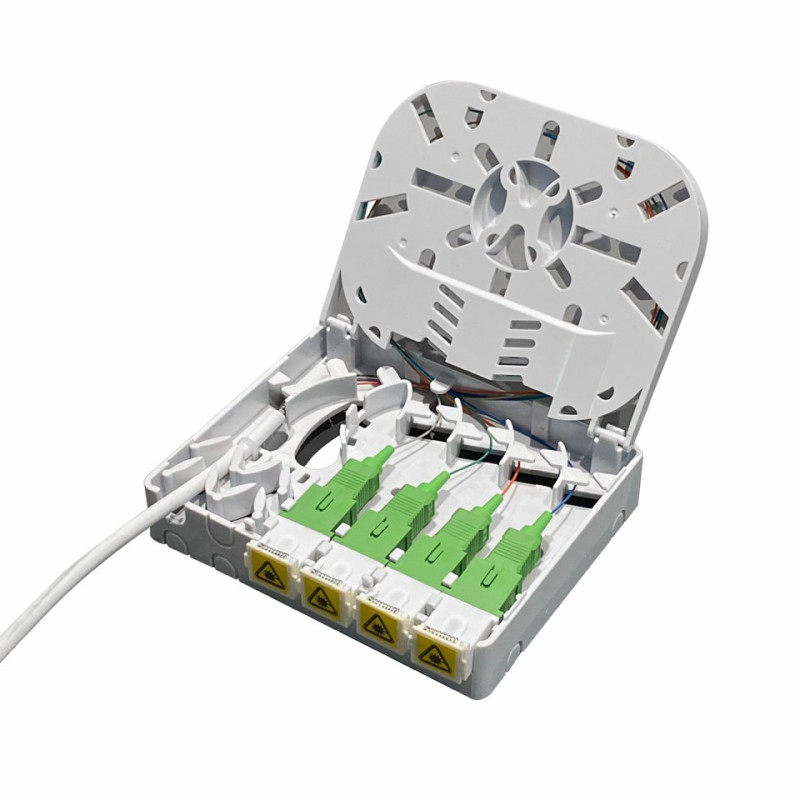

Connectix Customer Splice Point (CSP)x4i

Suitable for use within Fibre-to-the-Home (FTTH) and Fibre-to-the-Business (FTTB) deployments
In Stock
Reference: 009-118-000-00
Adaptors
The Connectix CSPx4i provides connectivity options inside homes, apartments and flats and used within utility cupboards (Connectix Residential Enclosures) as a fibre distribution point within a multiple dwelling unit (MDU). The CSPx4i interconnects ONTs and routers and switches at the consumer end and as termination points within enterprise LANs/tenant business premises, linking backbone cables to and from riser/MER/SER locations. When installed as part of Connectix POL solution the system will deliver excellent performance with minimal loss and ease of installation.

Within the Connectix CSPx4i is splice tail slack management suitable for most common fibre drop and backbone feeds including 900um, 1.8mm and 2mm cables, suitable for 1 or 2 SC/APC, SC/PC, LC/APC Duplex, LC/PC Duplex adaptors.

Features & Benefits
  • Compact size, light weight slimline Customer Splice Point
  • Locate in apartments, enterprise LANs, equipment apartment cabinets
  • GPON / POL Solution
  • FTTH, FTTP, MDU, SDU, SMDU, enterprise LAN suitable
  • Applicable for drop cable or ordinary pigtails, mechanical
  • splices and fusion splices
  • Can load up to 2 SC/APC Simplex, SC/PC Simplex, LC/APC Duplex, LC/PC Duplex adaptors
  • Wall mounting and inbuilding mounting application
  • 3 drop cable entry ports; 2 adaptor slots
  • Manufactured of ABS plastic
009-118-000-00

Data sheet

Cable Entry
10 entry points / 4 adaptor
Material
ABS Plastic
Dimensions
80mm x 100mm x 29.5mm
Application
PON, POL, Enterprise LAN
Adaptor Type
SC/APC Simplex, SC/PC Simplex, LC/APC, Duplex, LC/PC Duplex
CPR Euroclass
B2ca-s1a-d0-a1
