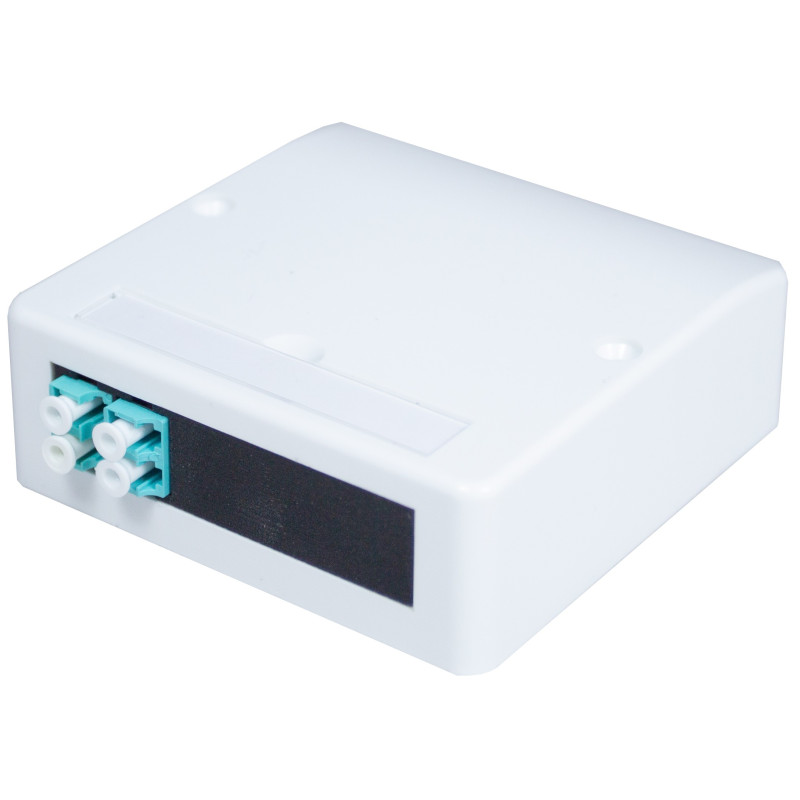

Connectix 4000 Series Vertical Fibre Outlet
The Connectix 4000 series offers Fibre outlets in a high density package.
The Connectix 4000 series offers Fibre outlets in a high density package. The 4000 series is quick and easy to install, just attach the base plate, plug in your SC/APC connectors and install the cover. This model offers 2 x SC/APC Simplex connections, 3 x fibre management spools with a 20mm diameter. A single splice holder with an integrated holder for a fibre splitter.
The 4000 Series outlets have been designed for direct wall mounting with top entry mini trunking. In addition, they fit on a standard backbox to provide maximum mounting flexibility. The position of the adaptors on the vertical outlet allows for a compact installation without protruding leads.
Features and Benefits
The 4000 Series outlets have been designed for direct wall mounting with top entry mini trunking. In addition, they fit on a standard backbox to provide maximum mounting flexibility. The position of the adaptors on the vertical outlet allows for a compact installation without protruding leads.
Features and Benefits
- High Density, single gang unit
- Available in a 2 or 4 port version
- No protruding leads
- Designed for direct wall mounting
- Custom logo service available
008-001-010-40
Data sheet
- Depth
- 27 mm
- Height
- 87 mm
- Material
- ABS thermoplastic resin, with grade UL94 VO at 1.5 mm flame retardancy
- Width
- 87 mm
- Conforms to
- ANSI/TIA-568-C
- IDC Colour
- Code IDC colour code to T568B
- PBC
- 1.6 mm double sided PTH boards
