Connectix IP68 External Drop Terminal Enclosure (DTC)
Connectix IP68 External Drop Terminal Enclosure (DTC)Connectix IP68 External Drop Terminal Enclosure (DTC)

Connectix IP68 External Drop Terminal Enclosure (DTC)

009-007-011-10

Enquire for Price & Lead time

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

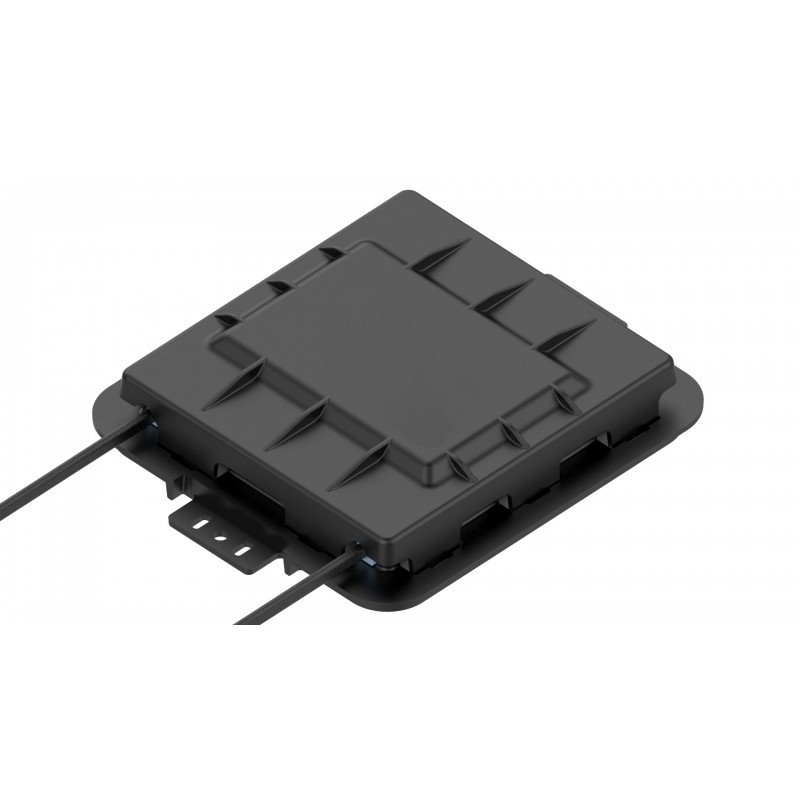

This IP68 External Drop Termination Closure (DTC) offers a compact size and a rugged exterior that is designed to allow for installation in tight spaces without compromising functionality. Four corner ports provide flexibility during installation. Called the Coyote DTC, this is ideal for quick restoration of damaged, diverse routed or cut fibre service drops or last mile FTTH applications.

Features and Benefits

  • Utilises a Splice Block System which permits single fusion, mass fusion, mechanical, PLC splitters, or a combination of all within one closure
  • Factory-installed gasket allows re-entry and re-use
  • Internal organiser manages buffer tube or ribbon cables
  • Snap together design is quick to assemble, no special tools required
  • Designed and tested in accordance to Telcordia® GR-771-CORE buried, underground, IP68 rated requirements
ApplicationDirect Bury, Below Grade, Pole/Wall, Aerial
Splice Capacity (Maximum) - Single Fusion, Ribbon24, 36
Cable Ports4
Cable Diameters4.3 - 9.4mm and Flat Drop
ConfigurationIn-Lin or Butt
Ingress ProtectionIn accordance to TELECORDIA GR-771-CORE, Buried, Underground, IP68
